10G/25G SFP28 Narrow Band Tunable |
Raytel 10G/25G SFP28 narrow band tunable series transceivers are designed for 5G front haul application , with the low cost and high quality performance . The transceiver is incorporated with a narrow band tunable laser (with 6/12 channels tuning range ) and APD-TIA receiver, which is suitable for the high link budge networks. The 10G SFP+ tunable products can be up to 20km reach , the 25G SFP28 tunable products can be up to 10km reach without dispersion compensation in fiber . The Operation Administration and Maintenance (OAM) function, which is meet G.698.4(G.metro) standard ,can be implemented to the transceivers and very helpful for managing the remote units .There are LC bi-directional and LC duplexer receptacle types available .
Key Features:
• C-band 6 / 12 Channels Tunable with 100GHz Spacing
• With / Without G.698.4 OAM Function
• Support 25GE and eCPRI with CDR
• Support 10GE and CPRI
• C-band cooled Tunable EML
• APD Receiver with Limiting Amplifier
• Support 10km / 20km Over G.652 SMF
• Positive Power Supply Lines: 3.3V
• Power Consumption<2.6W
• LVTTL Monitor and Control Interfaces
• ROHS 2.0 Compliance
| Part Number | Product
Description |
Reach | Temp.
Range |
TX wavelength
(nm) |
TX Power
(dBm) |
RX Wavelength
(nm) |
RX Sensitivity
(dBm) |
BER |
| RTFB1020Txx-ACH | 10G SFP+
Tunable BIDI |
20km | C | 1529.55~1538.19 | -2~+3 | 1540~1560 | -22 | 1E-12 |
| RTFB1020Txx-AHT | 10G SFP+
Tunable BIDI |
20km | I | 1550.12~1558.98 | -2~+3 | 1520~1540 | -22 | 1E-12 |
| RTFD1020Txx-AH | 10G SFP+
Tunable |
20km | I | 1529.55~1538.19
1550.12~1558.98 |
-2~+3 | 1520~1570 | -22 | 1E-12 |
| RTFB2510Txx-ACH | 25G SFP28
Tunable BIDI |
10km | C | 1529.55~1538.19 | -3~+4 | 1540~1560 | -21 | 5E-5 |
| RTFB2510Txx-AHT | 25G SFP28
Tunable BIDI |
10km | I | 1550.12~1558.98 | -3~+4 | 1520~1540 | -21 | 5E-5 |
| RTFD2510Txx-AH | 25G SFP28
Tunable |
10km | I | 1529.55~1538.19
1550.12~1558.98 |
-3~+4 | 1520~1570 | -21 | 5E-5 |
Note:
1.RTFB2510Txx-ACH is HEE ,RTFB2510Txx-AHT is TEE ;
for HEE ,ch1=196.0THz(1529.55nm) ,ch12=194.9THz(1538.19nm) ; for TEE,ch1=193.4THz(1550.18nm) ,ch12=192.3THz(1558.98nm) ;
- xx means :
06—cover ch1~ch6 ;16—cover ch7~ch12 ; 26—cover ch4~ch9 ;
- For temp. range ,C is 0~+70℃，I is –40~+85℃ .
25G SFP28 LWDM / MWDM / BIDI |

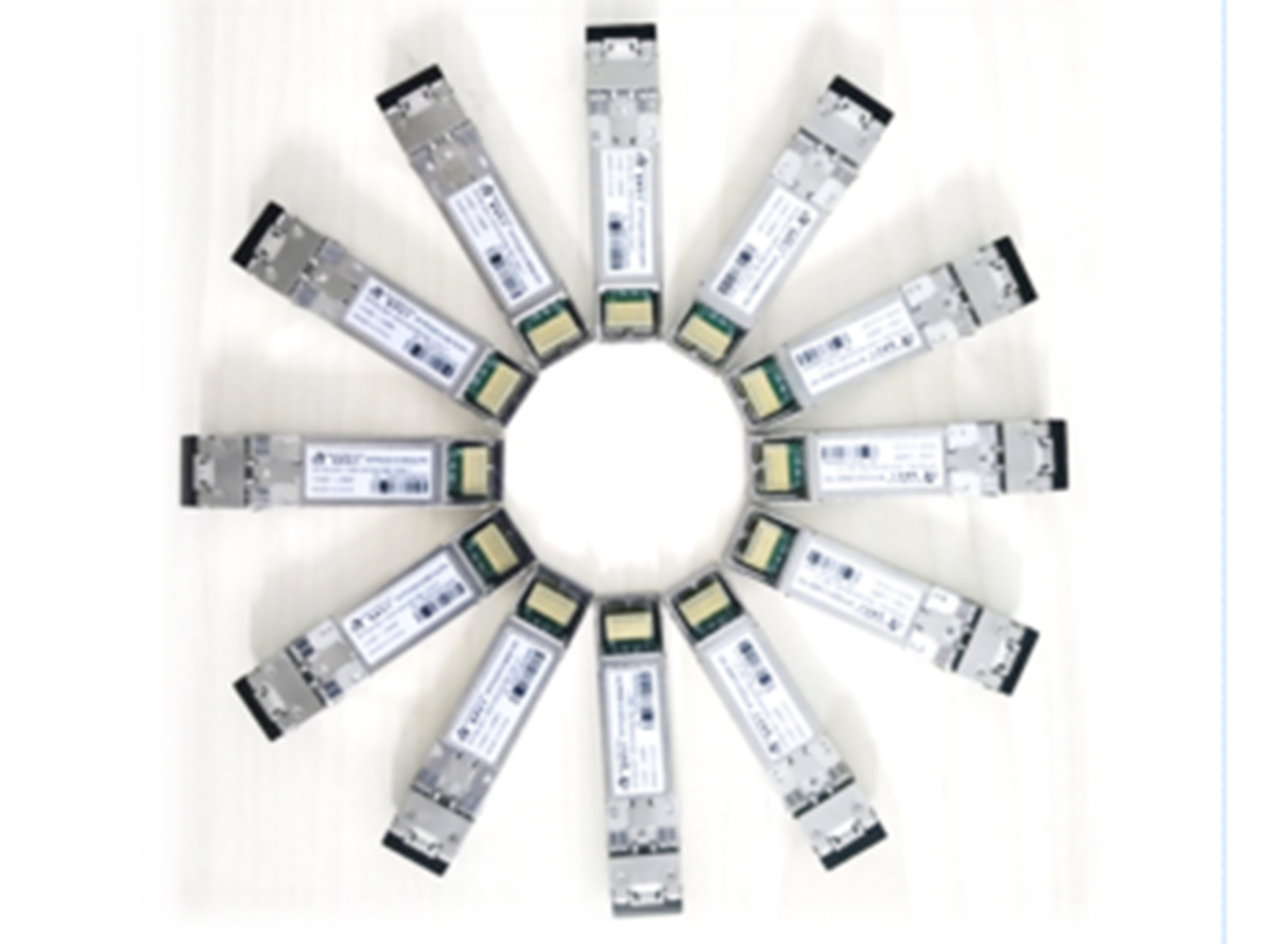

Raytel 25G SFP28 MWDM/LWDM/BIDI series transceivers are designed for 5G front haul application , with the low cost and high quality performance .
The MWDM series transceivers are incorporated with 12 channels MWDM cooled DFB lasers and PIN-TIA receiver, the APD-TIA receiver is available as well ,in case of the high link budge networks application; The LWDM series transceivers are incorporated with 12 channels LWDM cooled DFB lasers and PIN-TIA receiver, there are two versions of 10km and 15km applications; The BIDI series transceivers are incorporated with CWDM uncooled DFB lasers and PIN-TIA receiver, with 1271/1331nm and 1271/1311nm two versions .
The Operation Administration and Maintenance (OAM) function can be implemented to the MWDM/LWDM series transceivers and very helpful for managing the remote units .
Key Features:
• 12 Channels MWDM / LWDM
• With / Without OAM Function In MWDM / LWDM
• Support 25GE and eCPRI with CDR
• Support 10GE and CPRI
• Cooled / Uncooled DFB
• PIN / APD Receiver with Limiting Amplifier
• Support 10km / 15km Over G.652 SMF
• Positive Power Supply Lines: 3.3V
• Power Consumption<1.8W
• LVTTL Monitor and Control Interfaces
• ROHS 2.0 Compliance
| Part Number | Product
Description |
Reach | Temp.
Range |
TX Wavelength
(nm) |
TX Power
(dBm) |
RX Wavelength
(nm) |
RX Sensitivity
(dBm) |
BER |
| RTFD2510Mxxx-Px | 25G SFP28 MWDM LR | 10km | C/I | 1267.5~1374.5 | +2~+7 | 1260~1620 | -14 | 5E-5 |
| RTFD2515Mxxx-Ax | 25G SFP28 MWDM LR+ | 15km | C/I | 1267.5~1374.5 | +2~+7 | 1260~1620 | -19 | 5E-5 |
| RTFD2510Lxxx-Px | 25G SFP28 LWDM LR | 10km | C/I | 1269.2~1318.3 | 0~+6 | 1260~1620 | -14 | 5E-5 |
| RTFD2515Lxxx-Px | 25G SFP28 LWDM LR+ | 15km | C/I | 1269.2~1318.3 | +2~+6 | 1260~1620 | -15 | 5E-5 |
| RTFD2520Lxxx-Ax | 25G SFP28 LWDM LR+ | 20km | C/I | 1269.2~1318.3 | +2~+6 | 1260~1620 | -19 | 5E-5 |
| RTFB2510Cxx-Px | 25G SFP28 LR BIDI | 10km | C/E/I | 1271/1331 | -4~+4 | 1331/1271 | -11.5 | 5E-5 |
| RTFB2520Cxx-Px | 25G SFP28 LR+ BIDI | 20km | C/E/I | 1271/1331 | -2~+4 | 1331/1271 | -12.5 | 5E-5 |
