1.6T PAM4 Series (200G per lane)

Dichroic Filter

Raytel 1.6T PAM4 series transceivers are designed for high speed data connection ,such as Leaf to Spine switch in AI datacenter , switch to switch in High Performance  Computing etc.

The 1.6T VR8/2xVR4 PAM4  transceiver are incorporated with 850nm VCSEL and PD arrays. There is a low power consumption DSP inside the transceiver with the electrical and optical data rate are 212G PAM4 for each lane. The Optical interface is  MPO-16 APC or dual MPO-12 APC.

The 1.6T DR8/2xDR4 PAM4 series are based on SiP (Silicon Photonics) technology ,There is a low power consumption DSP inside the transceiver with the electrical and optical data rate are 212G PAM4 for each lane . The Optical interface is  MPO-16 APC or dual MPO-12 APC.

Key Features:

•    8 Independent Parallel Optical Lanes

•    Data Rate 8×106.25GBaud/s PAM4

•    Support 8x200G/2x800G

•    850nm VCSEL/PD based technology for 1.6T VR

•    SiP Base Technology For 1.6T DR/DR-2

•    MPO-16 APC/Dual MPO-12 APC Optical Receptacle

•    Positive Power Supply Lines: 3.3V

•    Low Power Consumption

•    CMIS 5.0 Compliance

•    ROHS 2.0 Compliance

Part Number Product

Description

 Package Data Rate Reach Wavelength Connector Temp.
RMON9H5F85-PCM8 1.6T OSFP224 2xVR4 OSFP224 8x200G 50m 850nm Dual MPO-12 APC C
RMOM9H5F85-PCM8 1.6T OSFP224 VR8 OSFP224 8x200G 50m 850nm  MPO-16 APC C
RMON9D5F13-PCM8 1.6T OSFP224 2xDR4 OSFP224 8x200G 500m 1310nm Dual MPO-12 APC C
RMOM9D5F13-PCM8 1.6T OSFP224 DR8 OSFP224 8x200G 500m 1310nm MPO-16 APC C
RMON902F13-PCM8 1.6T OSFP224 2xDR4-2 OSFP224 8x200G 2km 1310nm Dual MPO-12 APC C
RMOM902F13-PCM8 1.6T OSFP224 DR8-2 OSFP224 8x200G 2km 1310nm MPO-16 APC C

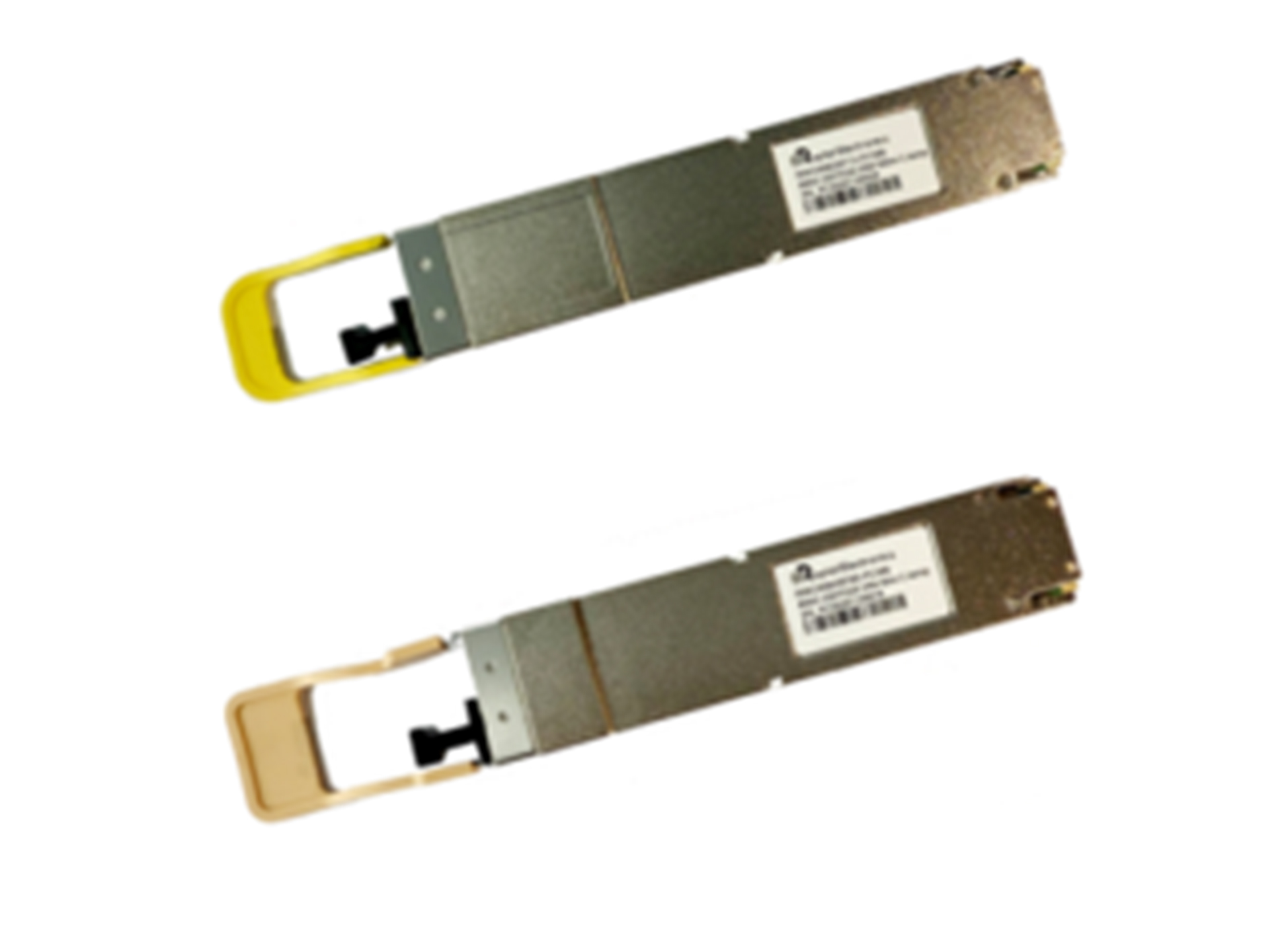

800G PAM4 Series (200G per lane)



Dichroic Filter

Raytel 800G PAM4 series transceivers are designed for high speed data connection ,such as Server to Leaf switch or Leaf to Spine switch in AI datacenter , switch to switch in High Performance  Computing etc.

The 800G VR4 PAM4  transceiver are incorporated with 850nm VCSEL and PD arrays. There is a low power consumption DSP inside the transceiver with the electrical and optical data rate are 212G PAM4 for each lane. The Optical interface is MPO-12 APC.

The 800G DR4 PAM4 series are based on SiP (Silicon Photonics) technology ,There is a low power consumption DSP inside the transceiver with the electrical and optical data rate are 212G PAM4 for each lane . The Optical interface is MPO-12 APC.

Key Features:

•    4 Independent Parallel Optical Lanes

•    Data Rate 4×106.25GBaud/s PAM4

•    Support 4x200G

•    850nm VCSEL/PD based technology for 800G VR4

•    SiP Base Technology For 800G DR4

•    MPO-12 APC Optical Receptacle

•    Positive Power Supply Lines: 3.3V

•    Low Power Consumption

•    CMIS 5.0 Compliance

•    ROHS 2.0 Compliance

Part Number Product

Description

 Package Data Rate Reach Wavelength Connector Temp.
RMOM8H5F85-PCM8 800G OSFP224 VR4 OSFP224 4x200G 50m 850nm  MPO-12 APC C
RMOM8D5F13-PCM8 800G OSFP224 DR4 OSFP224 4x200G 500m 1310nm MPO-12 APC C

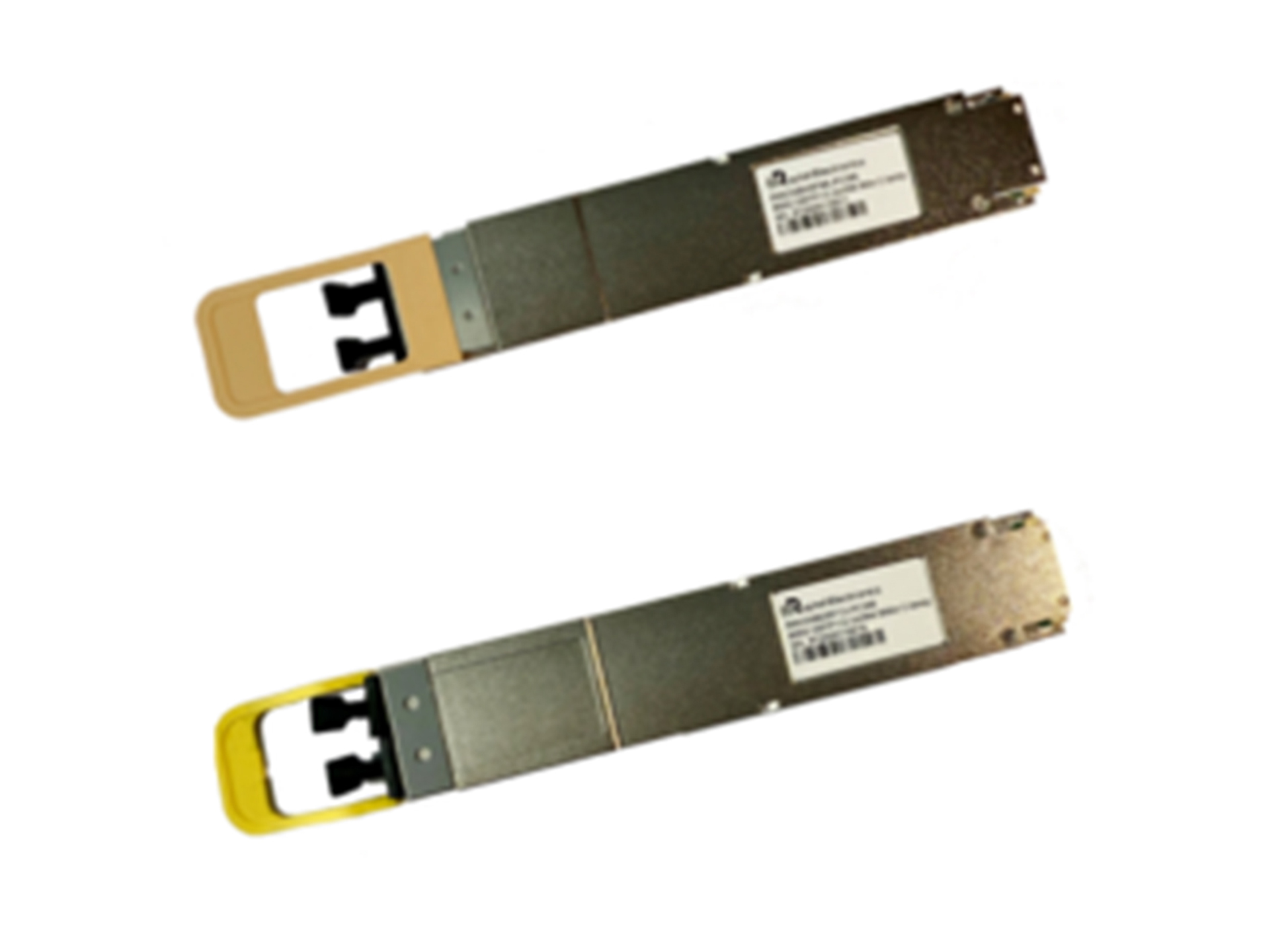

800G PAM4 Series (100G per lane)

Dichroic Filter

Raytel 800G PAM4 series transceivers are designed for high speed data connection ,such as Leaf to Spine switch in AI datacenter , switch to switch in High Performance  Computing etc.

The 800G VR8/ 2xVR4 PAM4  transceiver are incorporated with 850nm VCSEL and PD arrays. There is a low power consumption DSP inside the transceiver with the electrical and optical data rate are 106G PAM4 for each lane. The Optical interface is MPO-16 APC or dual MPO-12 APC.

The 800G DR8/2xDR4 PAM4 series are based on SiP (Silicon Photonics) technology ,There is a low power consumption DSP inside the transceiver with the electrical and optical data rate are 106G PAM4 for each lane . The Optical interface is MPO-16 APC or dual MPO-12 APC.

Key Features:

•    8 Independent Parallel Optical Lanes

•    Data Rate 8×53.12GBaud/s PAM4

•    Support 1x800GbE/2x400GbE/4x200GbE/8x100GbE

•    850nm VCSEL/PD based technology for SR

•    SiP Base Technology For DR/FR/LR

•    MPO-16 APC/Dual MPO-12 APC Optical Receptacle

•    Positive Power Supply Lines: 3.3V

•    Low Power Consumption

•    CMIS 5.0 Compliance

•    ROHS 2.0 Compliance

Part Number Product

Description

 Package Data Rate Reach Wavelength Connector Temp.
RMON8H5F85-PCM6 800G OSFP112 2xVR4 OSFP112 8x100G 50m 850nm Dual MPO-12 APC C
RMOM8H5F85-PCM6 800G OSFP112 VR8 OSFP112 8x100G 50m 850nm  MPO-16 APC C
RMQM8H5F85-PCM6 800G QSFP-DD VR8 QSFP-DD 8x100G 50m 850nm  MPO-16 APC C
RMON8D5F13-PCM6 800G OSFP112 2xDR4 OSFP112 8x100G 500m 1310nm Dual MPO-12 APC C
RMON802F13-PCM6 800G OSFP112 8xFR1 OSFP112 8x100G 2km 1310nm Dual MPO-12 APC C
RMON810F13-PCM6 800G OSFP112 8xLR1 OSFP112 8x100G 10km 1310nm Dual MPO-12 APC C
RMOM8D5F13-PCM6 800G OSFP112 DR8 OSFP112 8x100G 500m 1310nm MPO-16 APC C
RMOM802F13-PCM6 800G OSFP112 8xFR1 OSFP112 8x100G 2km 1310nm MPO-16 APC C
RMOM810F13-PCM6 800G OSFP112 8xLR1 OSFP112 8x100G 10km 1310nm MPO-16 APC C
RMQM8D5F13-PCM6 800G QSFP-DD DR8 QSFP-DD 8x100G 500m 1310nm  MPO-16 APC C
RMQM802F13-PCM6 800G QSFP-DD 8xFR1 QSFP-DD 8x100G 2km 1310nm  MPO-16 APC C
RMQM810F13-PCM6 800G QSFP-DD 8xLR1 QSFP-DD 8x100G 10km 1310nm  MPO-16 APC C

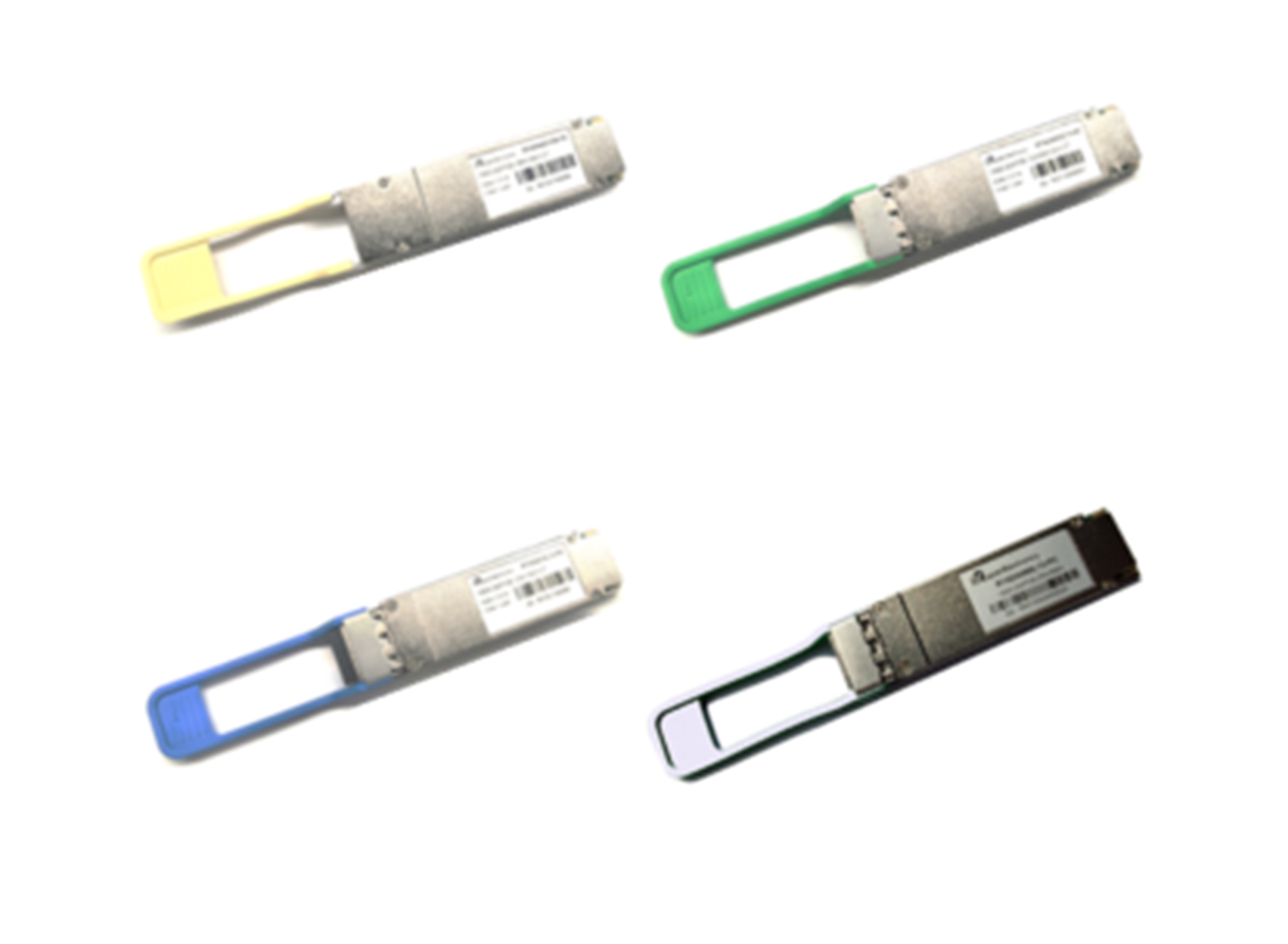

40G/100G QSFP28 Series

Dichroic Filter

Raytel 40G/100G QSFP28 series transceivers are designed for high speed data connection ,there are 40G SR4/eSR4/LR4 ,100G SR4/eSR4/CWDM4/LR4/ER4/ZR4 different types ,which can be used in  TOR to Leaf switch ,Leaf to Spine switch,  Spine to Core switch in datacenter , switch to switch in High Performance  Computing etc.

The 40G/100G QSFP28 SR4/eSR4 series transceivers are incorporated with 850nm VCSEL and PD arrays. The 40G QSFP+ LR4 and 100G QSFP28 CWDM4 transceiver are incorporated with 4 CWDM uncooled DFB lasers and a PD array . The 100G QSFP28 LR4 transceiver is incorporated with 4 Lan-WDM cooled DFB lasers and a PD array .The 100G QSFP28 ER4 /ZR4 transceivers are incorporated with 4 Lan-WDM cooled EML lasers and a PD array , the SOA is added in 100G ZR4.

Key Features:

•    4 Independent lanes

•    Support 4×25.78G/s (100GE) and 4×27.95G/s (100GOTU4) with CDR

•    Support 4×10.3125G/s (40GE)

•    MPO-12 Optical Receptacle For SR4

•    Dual LC Receptacle For CWDM4 / LR4

•    Hermetical Seal For 100G ER4 / ZR4

•    Positive Power Supply Lines: 3.3V

•    Low Power Consumption

•    QSFP+/QSFP28 MSA Compliance

•    ROHS 2.0 Compliance

Part Number Product

Description

 Package Data Rate Reach Wavelength Connector Temp.
RTAM40D1F85-PC 40G QSFP+ SR4 QSFP+ 4x10G 100m 850nm MPO-12 C
RTAM40D3F85-PC 40G QSFP+ eSR4 QSFP+ 4x10G 300m 850nm MPO-12 C
RTAD4010C13-PC 40G QSFP+ LR4 QSFP+ 4x10G 10km CWDM4 Dual LC C
RTAMA0D1F85-PC 100G QSFP28 SR4 QSFP28 4X25G 100m 850nm MPO-12 C
RTAMA0D3F85-PC 100G QSFP28 eSR4 QSFP28 4X25G 300m 850nm MPO-12 C
RTAMA0D5F85-PC 100G QSFP28 PSM4 QSFP28 4X25G 500m 1310nm MPO-12 C
RTADA002C13-PC 100G QSFP28 CWDM4 QSFP28 4X25G 2km CWDM4 Dual LC C
RTADA010L13-PC 100G QSFP28 LR4 QSFP28 4X25G 10km LWDM4 Dual LC C
RTADA040L13-PC 100G QSFP28 ER4 QSFP28 4X25G 40km LWDM4 Dual LC C
RTADA080L13-PC 100G QSFP28 ZR4 QSFP28 4X25G 80km LWDM4 Dual LC C
